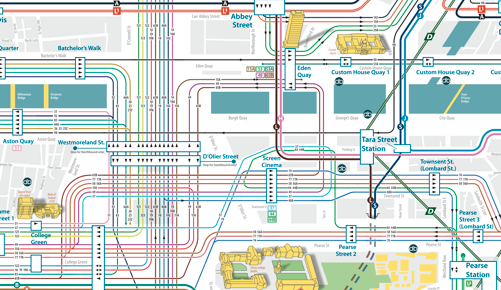

The same extract (O’Connell Street - Trinity College) after completing the final set of refinements (rounding corners, introducing landmarks, adding underpasses/tunnels and adding mode symbols, dublin bike stations, churches, hospitals, parks, etc.)

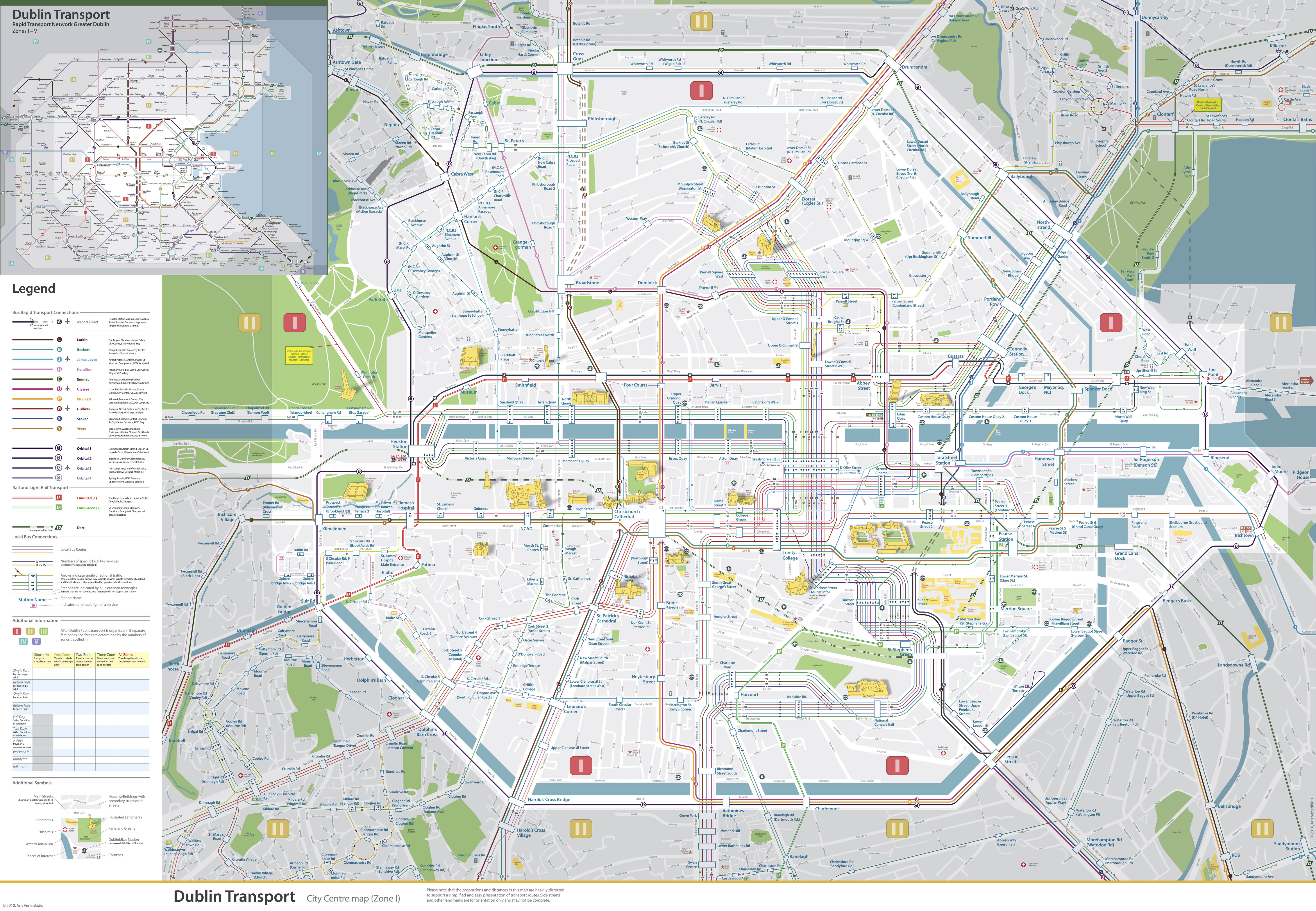

The final map of the city centre area took over 6 months (that is not including any of the network drafting work or work on the rapid network map). The final result can be seen below (click to enlarge). The map marks a new reference point to what a future public transport map for the city centre should aim to achieve.

All content © Aris Venetikidis 2011
